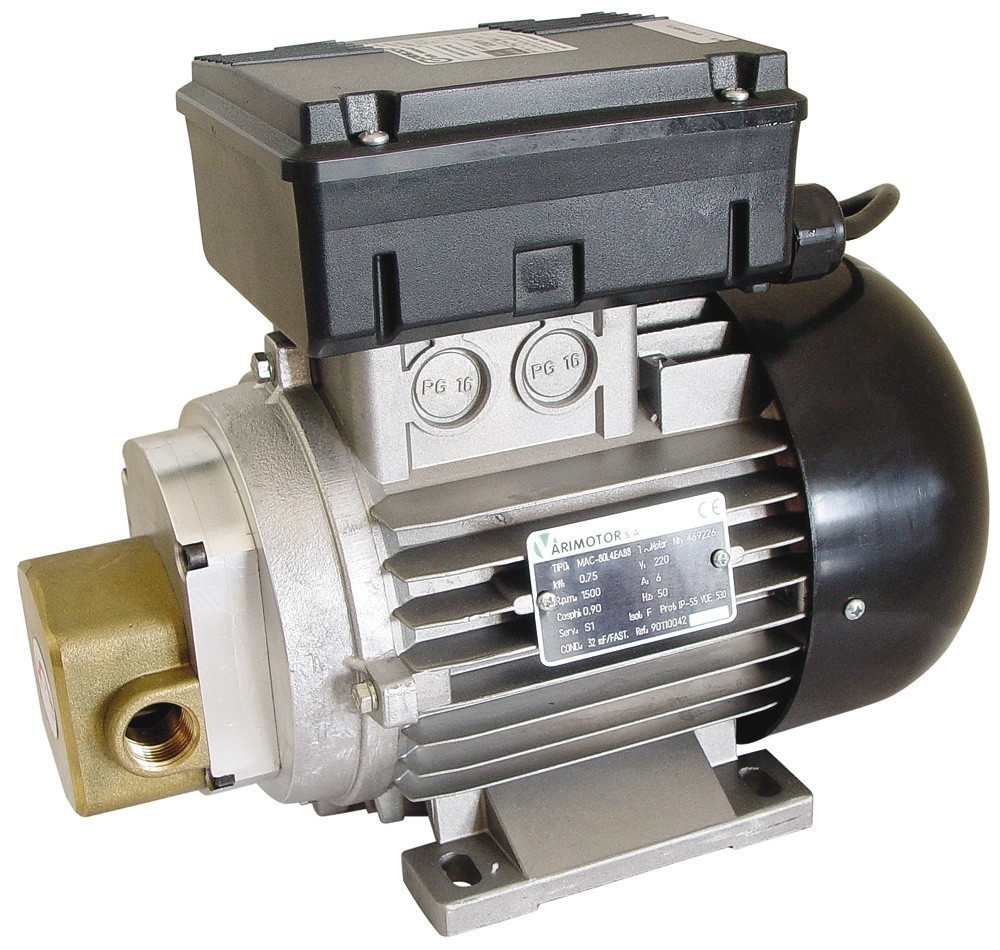

EA-88 (0,74kW) 230VAC Gear self-suction 20-25 L/MIN

Print
Liquids: Lubricant Lubricant
EA-88 (0,74kW) 230VAC 20-25L/MIN

Self-suction gear pumps for the lubricant transfer.

They are suitable for its use in the agriculture, building, public works and industry.



Technical data:

  • With recirculation bypass system
  • It is suitable for lubricant up to SAE-140 density
  • Suction: 2,5m · Delivery: 40m
  • Flow: 20-25l/min (SAE-20/50W at 25ºC)
  • Motor: 0,74kW self-ventilated 230VAC 50Hz single-phase. IP-55 protection
  • With thermal protector
  • Consumption: 4-6A
  • R.P.M.: 1500rpm
  • Bypass pressure: 9-10bar
  • Inlet / outlet tube: 1/2" GAS (BSP)
  • ON/OFF Switch
  • 3m 230VAC connection cable with injected plug
EA-88 (0,74kW) 230VAC
SEA-88 (0,74kW) 230VAC 25 L/MIN · Pump with litre meter
Liquids: Lubricant Lubricant
EA-88 (0,74kW) 230VAC pump + MGE-40 electronic meter
EA-88 (0,74kW) 230VAC + MGE-40
SEA-88 (0,74kW) 230VAC 25 L/MIN · Pump with litre meter
Optional:
- Pump support handle

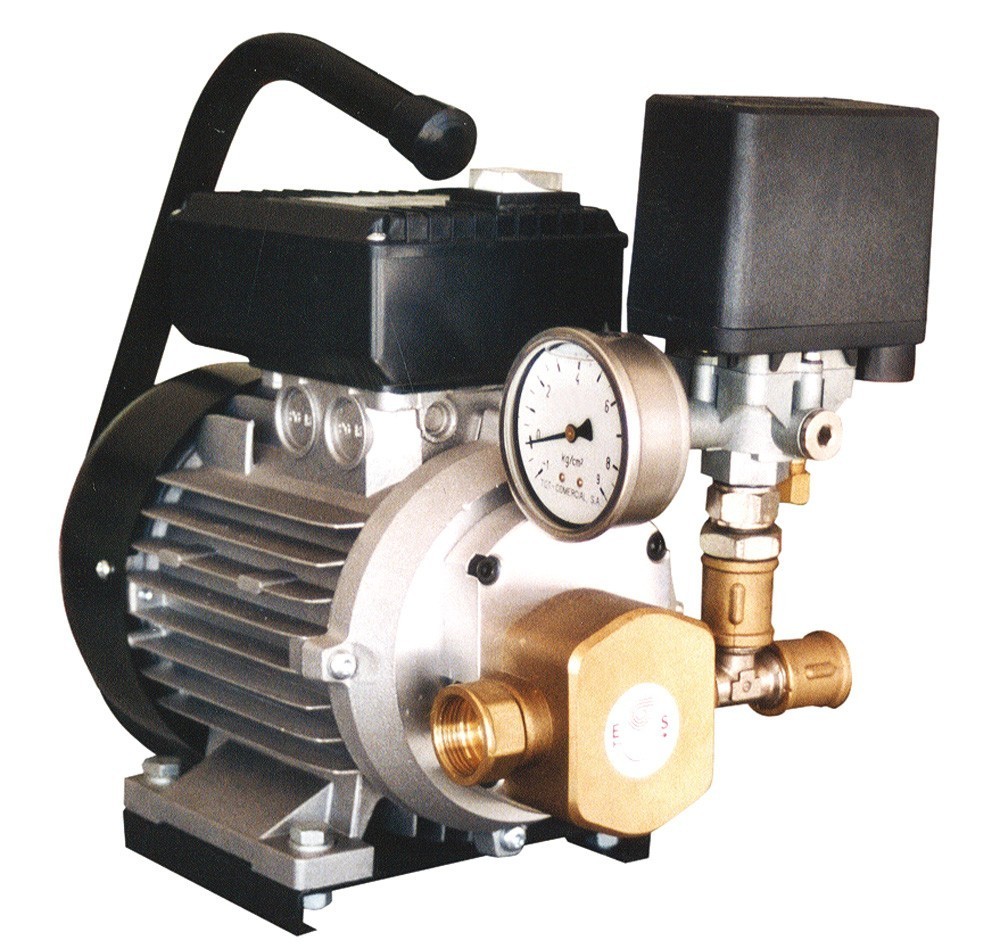

EA-88 (0,74kW) 230VAC pump with pressure switch
Liquids: Lubricant Lubricant
EA-88 (0,74kW) 230VAC with 35bar pressure switch

In an industrial supply installation at long distance, it is advisable to equip the pump with PRESSURE SWITCH, that allows the pump starting and stopping through the nozzle opening or closing.

It has built-in a check valve.

Optional:
- Pump support handle
- Vacuum gauge (pump with pressure switch) 803500002O
EA-88 (0,74kW) 230VAC pump with pressure switch
