Micro-filters

FG-700 / FG-1000 3" / 4" · 15 µm (micron)

Liquids: Diesel Diesel  Petrol Petrol Biodiesel Biodiesel

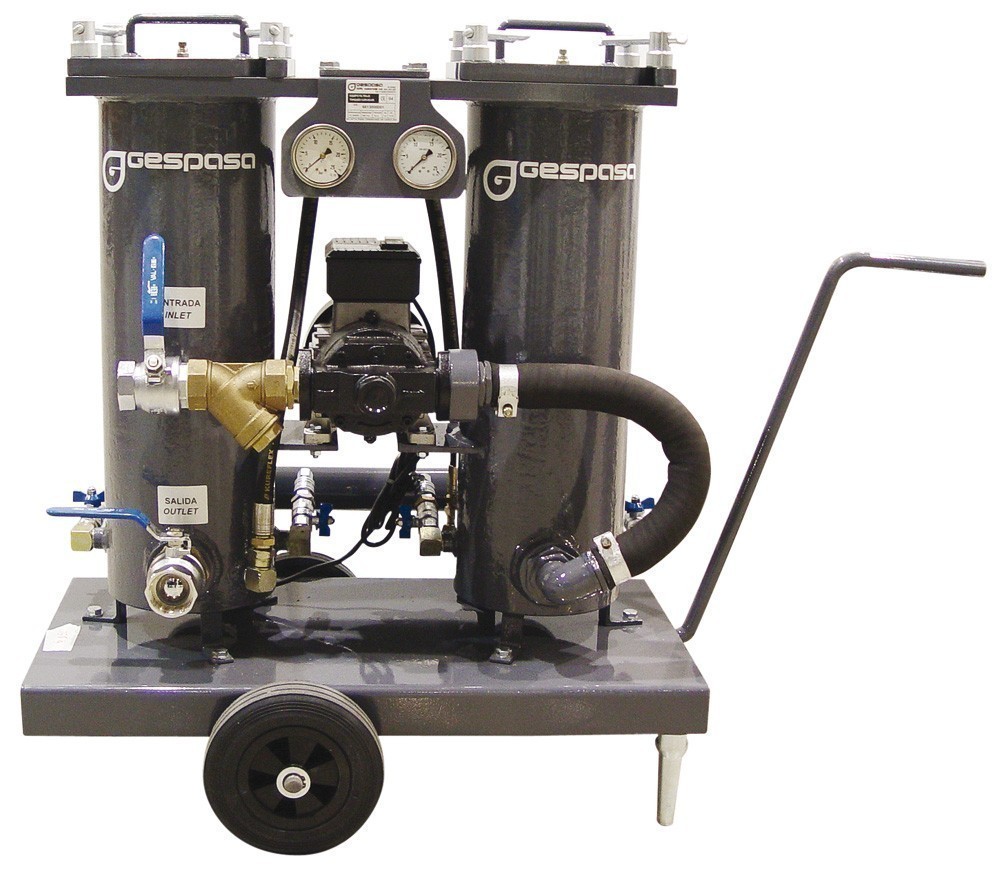

FG-700x2 Fixed Filtering Kit · 50/15 µm · 3"
  • It is suitable for particle microfiltration up to 15 µm (micron). Thefiltering paper is water absorbent.
  • Optional: 50 µm (micron) for Biodiesel (non-absorbent)
  • It is possible to drain through the manual drain valve placed in the microfilter bottom.
  • Optional with 2 or 3 FG-300 elements to get more flow rate:700 or 1,000 l/min
  • This microfilter has been made for the diesel, petrol, kerosene, AVGAS, JET A-1, and, in general, hydrocarbon liquid microfiltration.
  • Differential manometer that shows when the level of the filter is exceeded.
  • The microfilter is supplied with the filtering element installed.


Technical features:

  • Filtration: 15 µm (micron) · Optional: 50 µm (micron) non-absorbent
  • Capacity: 15 litres in the housing interior
  • Flow: 700 or 1,000 l/min (according to the number of FG-300 elements)
  • Microfilter cover and body: Aluminium
  • Differential manometer
  • Inlet / Outlet Connections: 3" or 4"
  • Manual lower drain valve
  • Installation: in the suction or delivery of the pumping kit
  • Maximum operating pressure: 6 bar
  • Maximum housing pressure: 10 bar



Size and weight (approx.):
  • Dim.: 900x826x729 mm (length x width x height)
  • Weight: 74 kg
Other possible combinations :
- FG-1000 :: 1000 l/min
FG-700
