MOBILE FILTERING KIT + pump · 50/15 µm · water absorbent

Liquids: Diesel Diesel  Petrol Petrol

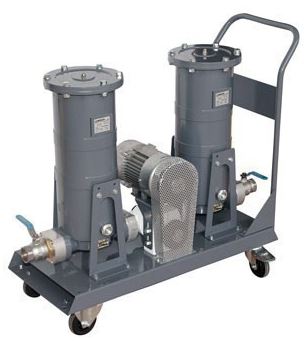

FG-300x2 Mobile Filtering Kit + BAG-800 1 kW 230/400 VAC EExd Pump · 50/15 µm
  • Two-phase filtration kits designed for the fuel (diesel, petrol, kerosene and oil) filtering of buried or aerial tanks, getting the microfiltered fluid free of impurities.
  • First filtration phase of 50 µm (micron)
  • Second filtration phase for water absorption and impurity filtration of 15 µm (micron)
  • Special superficial interior and external finish against corrosion.



The kits are composed of:

  • 1 mobile platform
  • BAG-800 pump
  • 2 manual drain valves to eliminate the residual air
  • 2 differential manometers which show when the filter has to be replaced or cleaned
  • 2 outlets for the filtered liquid sampling
  • 2 inlets for the connection of compressed air to clean the filters without being disassembled
  • 1 Ø150x458 mm impact filtering element of 50 µm (micron)
  • 1 final element of absorbent paper of 15 µm (micron)



Size and weight (approx.):

Size: 999x400x906mm (lengthxwidthxheight)
Weight: 89.5Kg

Optional
- Final spare part of absorbent paper of 15 µm (micron)
- Ø150x458 mm impact filtering spare part of 50 µm (micron)
MOBILE FILTERING KIT
