FG-300/15 15 µm (micron) · 300 l/min · F2"
Liquids: Diesel Diesel  Petrol Petrol Biodiesel Biodiesel

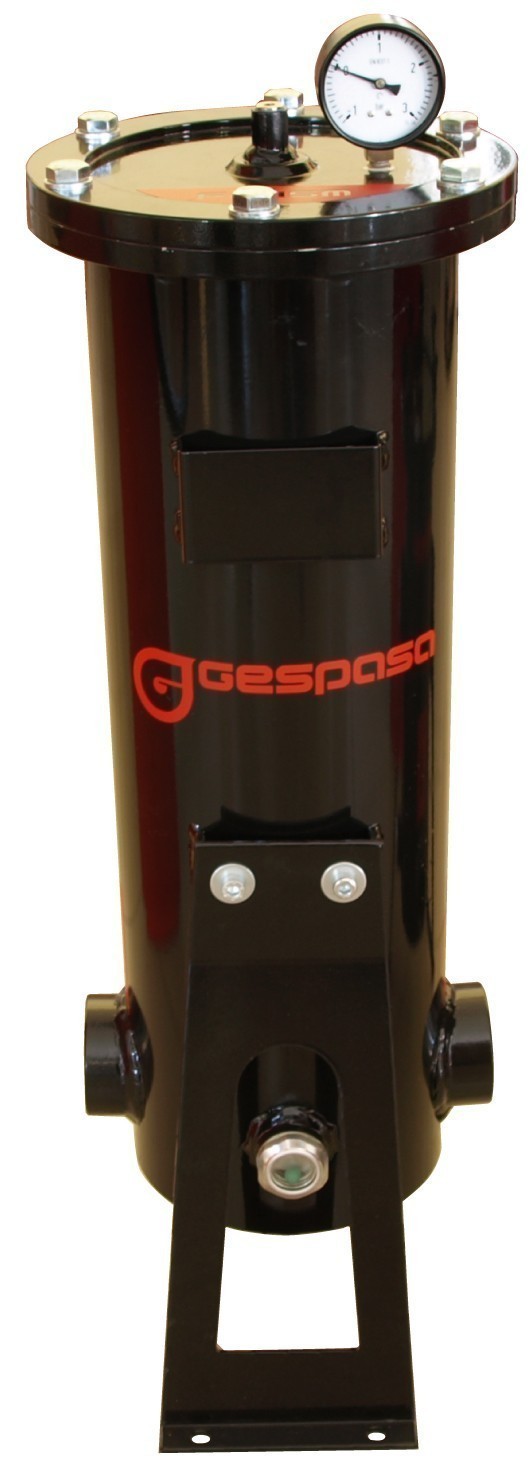

FG-300/15 · Water absorbent microfilter with aluminium housing · F2"
  • It is suitable for particle microfiltration up to 15 µm (micron). The filtering paper is water absorbent. It is possible to drain through the manual drain valve placed in the microfilter bottom.
  • This microfilter has been made for the diesel, petrol, kerosene, AVGAS, JET A-1, and, in general, hydrocarbon liquid microfiltration.
  • Differential manometer where you can see when the filter level is exceed.
  • The microfilter is supplied with the filtering element installed.

Technical features:

  • Filtration: 15 µm (micron)
  • Capacity: 15 litres in the housing interior
  • Flow: 300 l/min
  • Microfilter cover and body: Aluminium
  • Differential manometer
  • Inlet / Outlet Connections: F2" BSP or flange
  • Manual lower drain valve
  • Superior drain valve to eliminate the inner air of the filter
  • Installation: in the suction or delivery of the pumping kit
  • Maximum operating pressure: 6 bar
  • Maximum housing pressure: 10 bar
Size and weight (approx.):
  • Size: Ø254x312x670 mm (Ø x base x height)
  • Weight: 17 kg
