Meters

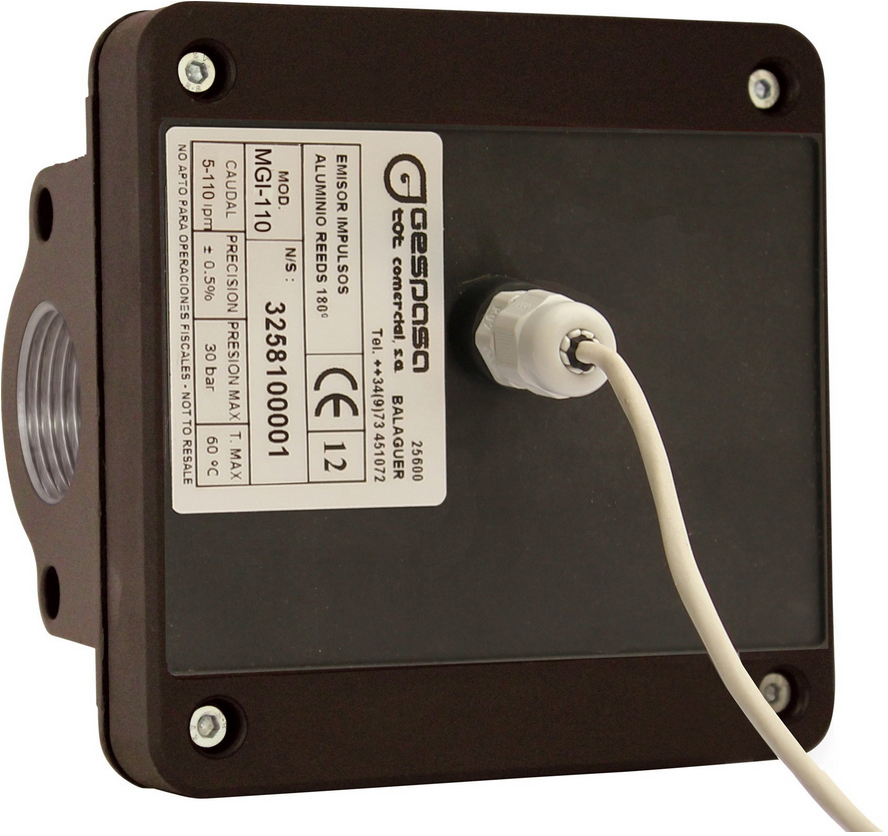

MGI-110 · PULSE METER ±0.5% · 1"

Liquids: Diesel Diesel  Lubricant Lubricant
MGI-110 · Pulse meter · 180º Reeds
  • Pulse meter for its in-line assembly, making easier the exact information of the fluid management and control systems.
  • For private use
  • Suitable for diesel and lubricant measurement



Technical data:

  • Max. voltage: 100 VDC
  • Max. power: 8 W
  • Max. intensity: 100 mA
  • Viscosity: 2-2000 cSt
  • Accuracy: ±0.5 %
  • Max. pressure: 55 bar
  • Max. temperature: 50 ºC
  • Min. temperature: -10 ºC
  • Two channels: 41 pulses per litre and channel
  • Connection through thread or flange: 1" BSP



Size and weight (approx.):
  • Size: 123x90x123mm (length x width x height)
  • Weight: 1.1Kg
MGI-110 · PULSE METER
