• Meter suitable for measuring diesel and lubricant, so as other liquids which are compatible with the aluminium and the meter specifications.
• Private use

Technical data:

• Aluminium body
• Measurement through high accuracy oval gears
• Digital Display of liquid crystal, not watertight. It must be installed an appropriate water protection.
  • 3 integers and 2 decimals: "999.99"
  • 4 integers and 1 decimal: "9999.9"
  • 5 integers: "99999"
• Flow: 10-250 l/min
• Accuracy: ±0.5 %
• Max. pressure: 45 bar
• Max. Temperature: 50 ºC
• Min. Temperature: -10 ºC
• Connection through F1" or 1 1/2" thread or flange
• Voltage: 230 VAC
• Calibration parameters and litre totalizer stored in a NON VOLATILE memory

Optional Functions

RESTRICTED USE WITH KEY:

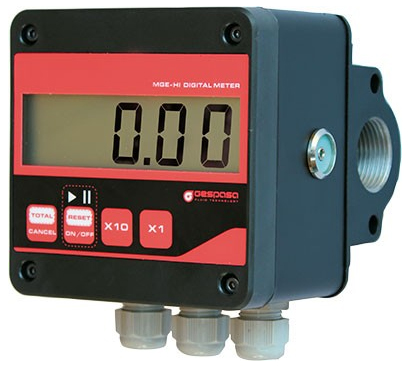

Optionally, the MGE-HI electronic meter has built-in an iButton reader which allows the restricted use to 20 users as maximum (iButton key) in the meter.

It is necessary to acquire a pack of keys + configuration change key:

Pack of 10-user keys

Pack of 20-user keys
