Meters

MGI-150 · PULSER 22 pulses x litre ±0,5%

Liquids: Diesel Diesel  Lubricant Lubricant

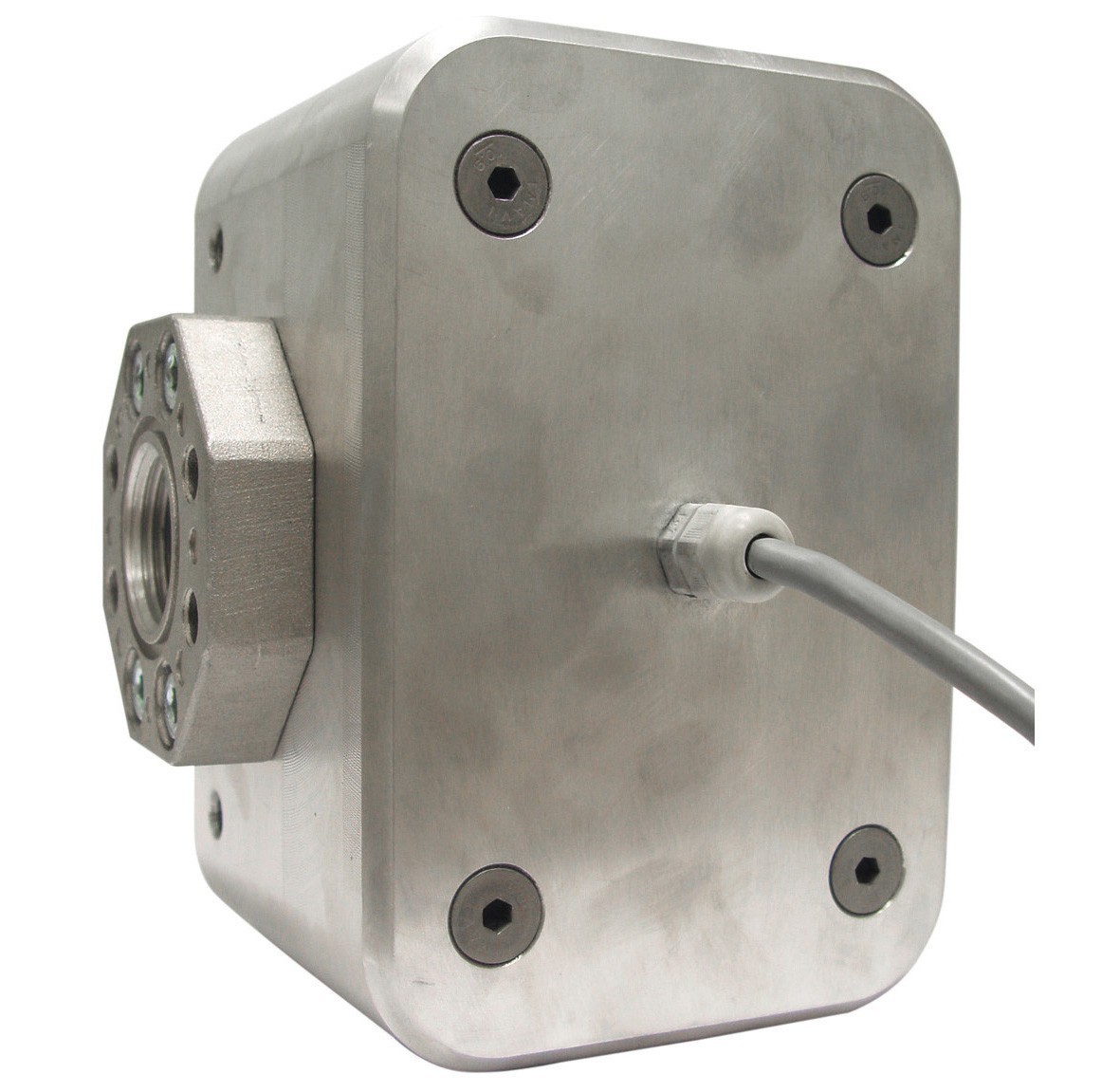

MGI-150 · Pulser

Pulser for its in-line assembly, making esier the exact information of the fluid management and control systems.



Technical data:

  • Flow: 10-150 l/min
  • Voltage: 28VCA/VCC
  • Maximum current: 100mA
  • Accuracy: ±0,5%
  • Maximum pressure: 50bar
  • 22 impulsions per litre
  • 11 impulsions per channel
  • Min./max. temperature: -10ºC / +60ºC
  • Inlet / outlet connection: H1" or 1 1/2" (flange)
  • Housing and cover: Aluminium
  • Two communication channels through REEDS
Size and weight (approx.):
  • Dim.: 116x104x170mm (length x width x height)
  • Weight: 4,9Kg
MGI-150 · PULSER
