MGE-800HI / MGI-800 30-800 l/min · ±0.5% · 3"

Liquids: Diesel Diesel  Lubricant Lubricant  Biodiesel Biodiesel

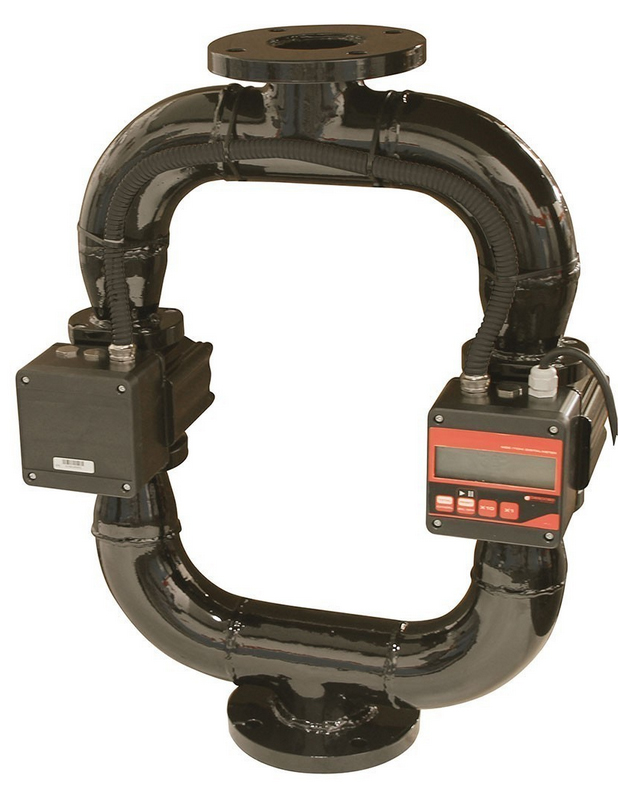

MGE-800HI · Electronic gear meter · ±0.5% · 3''

Electronic meter with aluminium measuring chamber and high accuracy oval gears.

Technical data:

  • Voltage: 230 VAC
  • Flow: 30-800 l/min
  • 5-digit totalizer
  • It stores the litres of the last service.
  • Maximum pressure: 45 bar
  • Min./Max. temperature: -10 ºC / +50 ºC
  • Accuracy: ±0.5%
  • Inlet/outlet connection connection: 3" flange
  • It is suitable for the diesel or lubricant measuring up to SAE-140 density.
  • It has calibration parameters and stored litre totalizer on a PERMANENT MEMORY.



Functions:

• Preset and automatic stop of the pump, solenoid...
• X10: Preset of 10 units (litres, gallons...)
• X1: Preset of 1 unit (litres, gallons...)
• DISPLAY: Display of the supplied units. It saves the units of the last service.
• TOTAL:  Total display of the supplied units. Maximum: 99,999
• CANCEL: It cancels the preset.
• RESET: To enter the numeral 0.
• ON/OFF: Switch the motor on or off.



Optional functions:

RESTRICTED USE WITH KEY:
• Optionally, the MGE-800HI meter has built in an iButton reader which allows the restricted use to 20 users as maximum (iButton key) in the meter.
It is necessary to acquire a pack of keys + configuration change key:

Pack of 10-user keys

Pack of 20-user keys

Size and weight (approx.):
  • Size: 543x250x713mm (Lengthxwidthxheight)
  • Weight: 32Kg
MGE-800HI / MGI-800
