HYDROCARBON SEPARATORS

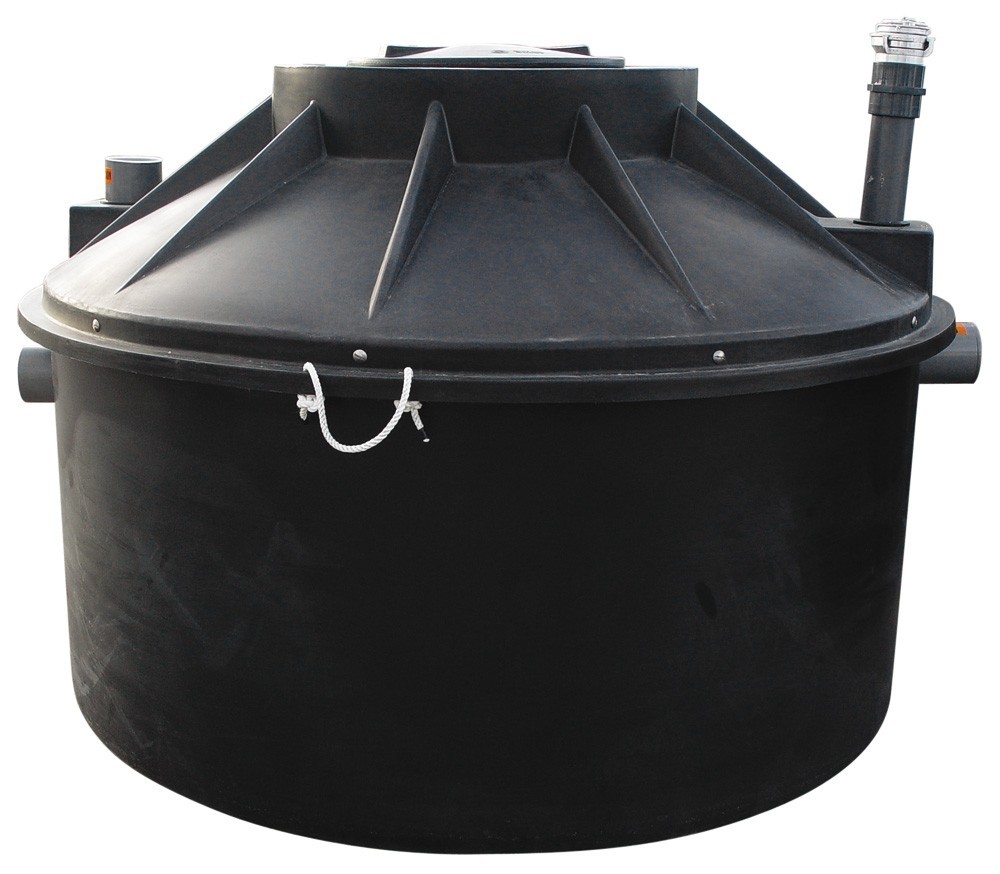

HYDROCARBON SEPARATORS WITH DECANTER AND COALLESCING GEL
  • Equipment made for retaining the hydrocarbons in suspension that could be present in dirty drain off water. It is headed by a decanter that will retain the heavy material.
  • The Spanish Water Law of 1985 and the corresponding local regulations forbid the spill of lubricant, oil and hydrocarbon, new or waste, on the surface, ground waters or in sewers.
  • The hydrocarbon separators with coallescing gel are particularly advisable to treat water before after a spill in sensible zones (rivers, lakes, seas, etc.) or when the local regulations ask for some results higher than it is usual. These separators comply with the prEN858 European Regulation, separators of Class I (spill < 5mg/l).



Features:

  • Retention capacity: 10 litres per l/s of nominal flow
  • Treatment capacity: 1 to 15 l/s
  • Decanter volume: 200 litres per l/s of nominal flow
  • Output: 99,88% (lower than 5 mg/l) for a density of 0,85
SHD0C2-1-03 hydrocarbon separator · Flow: 3 l/s
SHD0C2-1-06 hydrocarbon separator · Flow: 6 l/s
SHD0C2-1-08 hydrocarbon separator · Flow: 8 l/s
SHD0C2-1-10 hydrocarbon separator · Flow: 10 l/s
SHD0C2-1-15 hydrocarbon separator · Flow: 15 l/s
  Weight (Kg) Height (mm) Diameter (mm) Decanter Volume (litres) Separator Volume (litres)
SHD0C2-1-03 130 1170 1600 656 380
SHD0C2-1-06 225 1500 1930 1275 500
SHD0C2-1-08 245 1780 1930 1730 700
SHD0C2-1-10 305 1580 2400 2010 1030
SHD0C2-1-15 340 1930 2400 3020 1530
SH2/6643/01 hydrocarbon separator · Flow: 1 l/s
SH2/6643/03 hydrocarbon separator · Flow: 3 l/s
SH2/6643/06 hydrocarbon separator · Flow: 6 l/s
SH2/6643/08 hydrocarbon separator · Flow: 8 l/s
SH2/6643/10 hydrocarbon separator · Flow: 10 l/s
SH2/6643/15 hydrocarbon separator · Flow: 15 l/s
  Weight (Kg) Height (mm) Width (mm)
Length (mm)
SH2/6643/01 67 970 760 1190
SH2/6643/03 87 1280 760 1320
SH2/6643/06 145 1580 850 1910
SH2/6643/08 205 1630 940 2160
SH2/6643/10 238 1630 940 2400
SH2/6643/15 358 1900 1540 2340
HYDROCARBON SEPARATORS WITH DECANTER AND COALLESCING CELL
DECANTERS / SAND TRAPS
Liquids: Diesel Diesel
DB2/1000 decanter-sand trap
DB2/1500 decanter-sand trap
DB2/2000 decanter-sand trap
DB2/3000 decanter-sand trap
DB2/4000 decanter-sand trap
DB2/5000 decanter-sand trap
DB2/6000 decanter-sand trap
DB2/8000 decanter-sand trap
DB2/10000 decanter-sand trap
  Weight (Kg) Height (mm) Diameter (mm) Volume (litres)
DB2/1000 33 1360 1160 1000
DB2/1500 52 1220 1550 1500
DB2/2000 62 1500 1550 2000
DB2/3000 99 1500 1930 3000
DB2/4000 129 1840 1930 4000
DB2/5000 149 2180 1930 5000
DB2/6000 180 1880 2400 6000
DB2/8000 340 2450 2400 8000
DB2/10000 350 2910 2400 10000

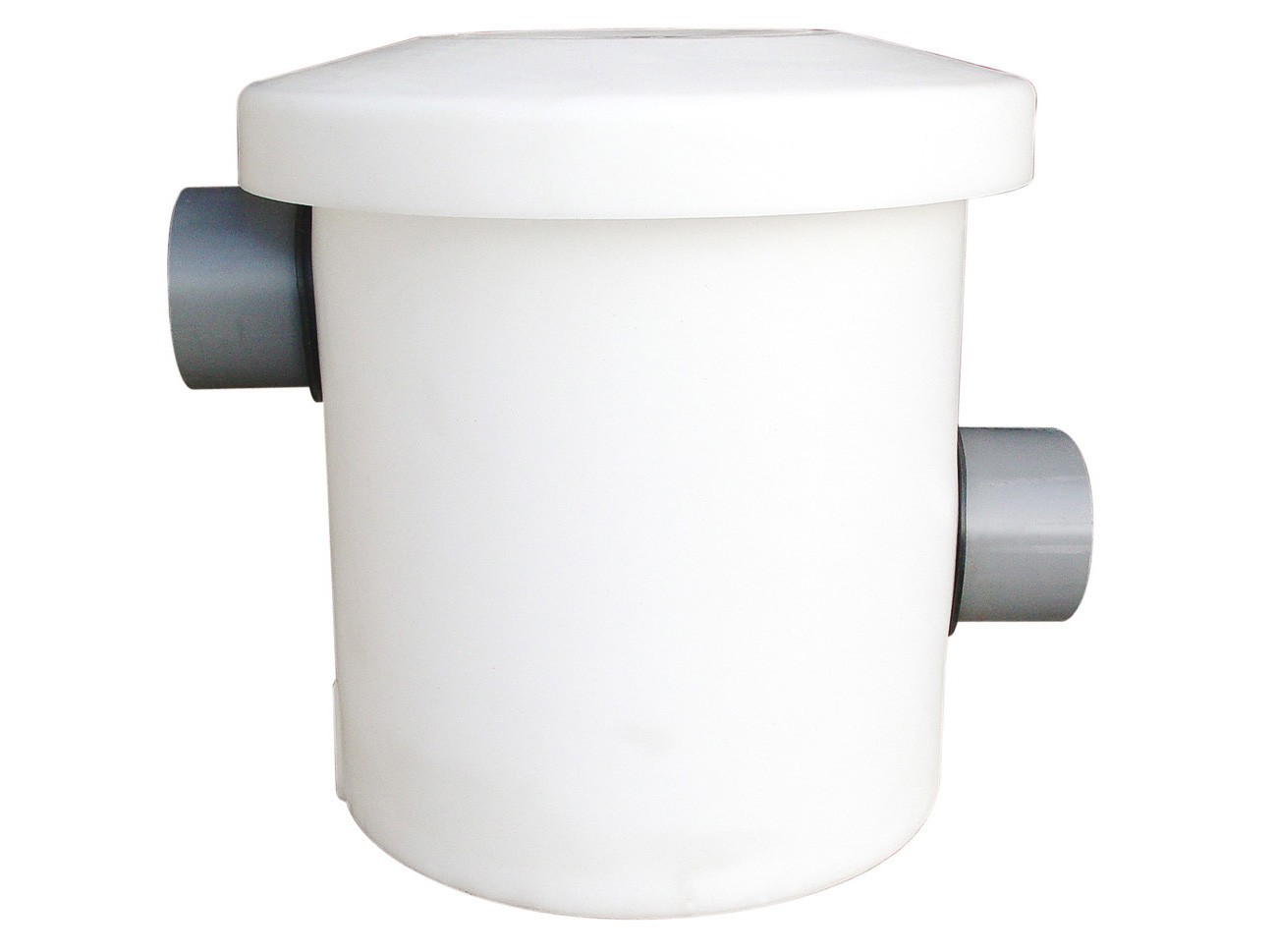

SAMPLE CATCH BASIN
Sample catch basin
  • The sample container is a peice of equipment that allows you to collect samples from effluent at the inlet and/or outlet of a depuration system.
  • This container allows you to analyse the contamination level of the effluents and control the output of the depuration kit.
  • Made of polyethylene, anticorrosion material
SAMPLE CATCH BASIN
