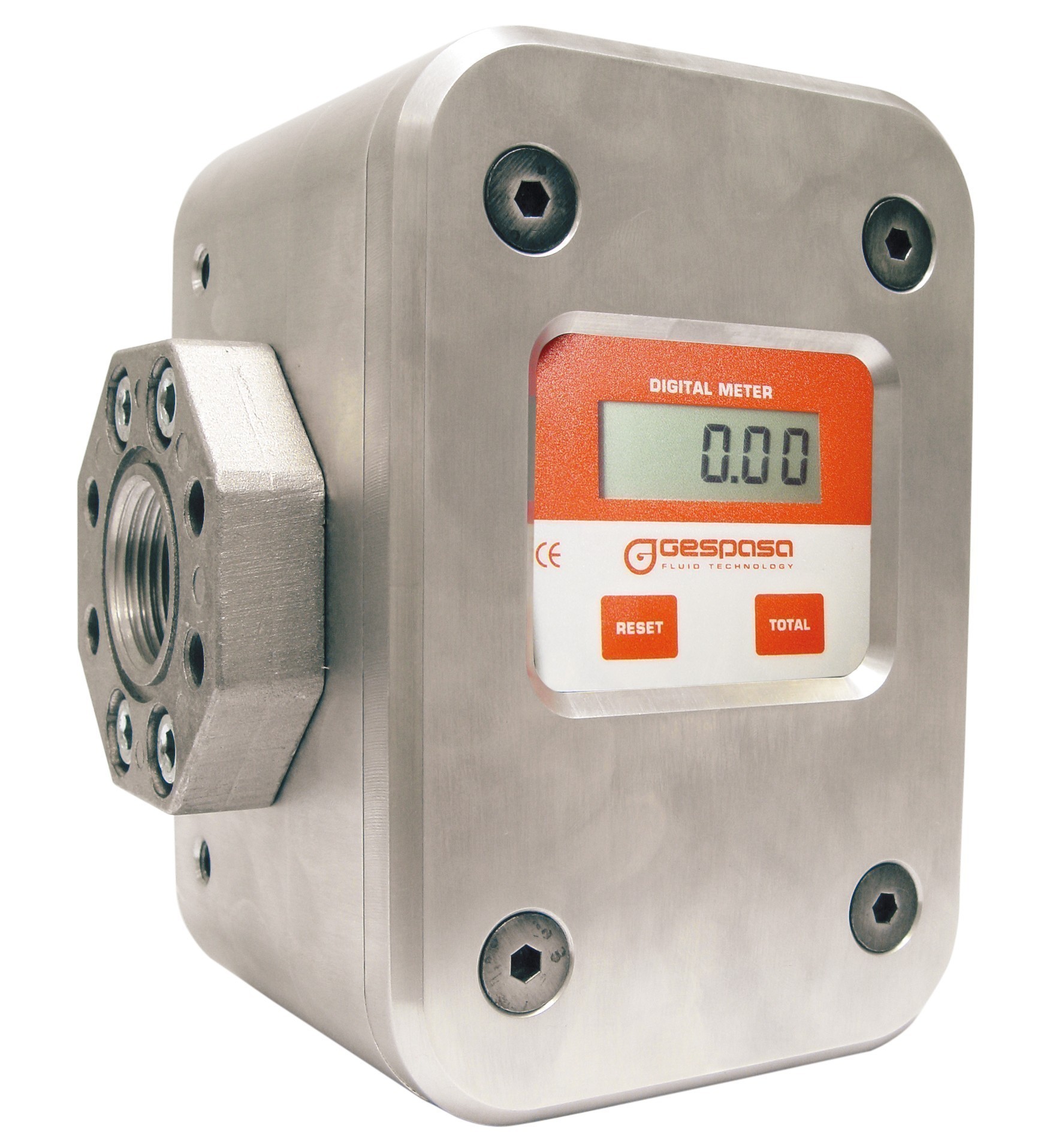

Electronic meter with aluminium measuring chamber, with high accuracy oval gears.
Technical data:
- Flow: 10-150 l/min
- 5 digit totalizer
- It stores the litres of the last service
- Maximum pressure: 80bar (security pressure)
- Maximum operation pressure: 50bar
- Min./Max. temperature: -10ºC / +60ºC
- Accuracy:
±0,5%
- Inlet/outlet connection connection: F1" or 1 1/2" (flange) (according to the model)
- It is suitable for the lubricant measuring up to SAE-140 density
- Feeding by button battery of long duration
- Low battery display
- It has calibration parameters and stored litre totalizer on a PERMANENT MEMORY.
