MG-80A · MECHANICAL Aluminium 10-90 L/MIN · ±1%

Print
Liquids:  Diesel Diesel

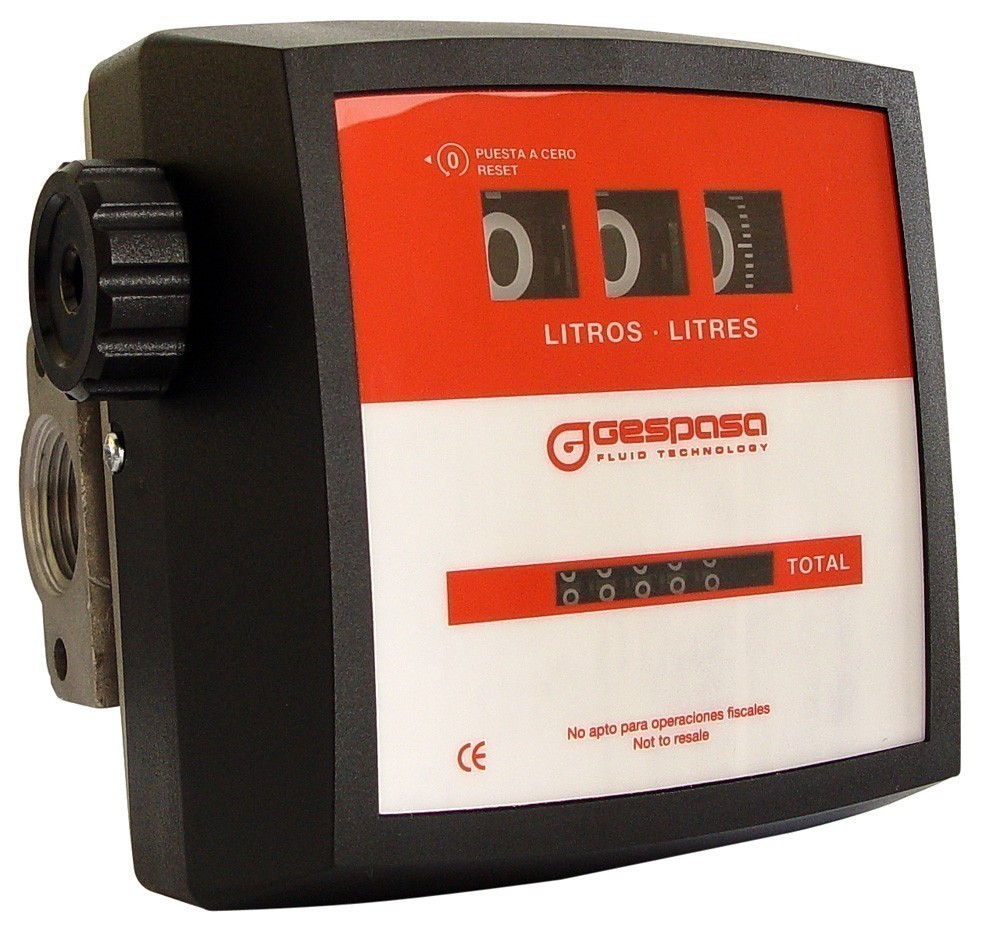

MG-80A · Mechanical aluminium flow meter
  • Aluminium body
  • Made of aluminium and high quality plastic materials. Its measuring chamber is fireproof with oscillating disc and it allows the transfer of any type of hydrocarbon liquids (please, consult us for other liquids).
  • Flow: 10-90 l/min
  • Accuracy: ±1%
  • Re-set indicator of 3 digits and totalizer of 6 digits
  • Maximum operating pressure: 5 bar
  • Burst pressure: 15 bar
  • Maximum temperature: 60ºC
  • Minimum temperature: -10ºC
  • Polyamide + Fibreglass housing
  • Inlet/outlet Connections: 1" GAS (BSP)
  • Inlet connection through threads or flanges
  • For private use, not suitable for fiscal operations
Size and weight (approx.):
  • Size: 180x132x165mm (longueur x largeur x hauteur)
  • Weight: 1,95Kg
MG-80A · MECHANICAL MG-80A · MECHANICAL
ACCESSORIES
Optional accessories
- Filter FUP-1 FF1'' GAS (BSP) of 352 micron
- M1'' short union flange kit in PA+Fibreglass
- M1'' long union flange kit in PA+Fibreglass

Special plastic flange with 50% fibreglass to be adapted to our meters, both mechanical and electronic meters, to pumps and/or pipes. It is optionally supplied with a STAINLESS filter-sieve of 352 microns to avoid the entry of impurities into the flow meter interior.

When you make an order it would be necessary to indicate on which connection you want this flange. This flange cannot be removed because of its special adhesive fixing. Otherwise we can supply the flange kit so you can install it on any of the meter connections yourself.

- Filter-sieve of 352 micron Ø33mm
- MM1'' brass union
- MF1'' PA+fibreglass adapter with BSP short thread
- MF1'' PA+fibreglass adapter with BSP long thread
- NBR Ø24x3,5 joint
- MF1'' PA+fibreglass adapter with BSP short thread with STAINLESS 352 micron sieve
ACCESSORIES
